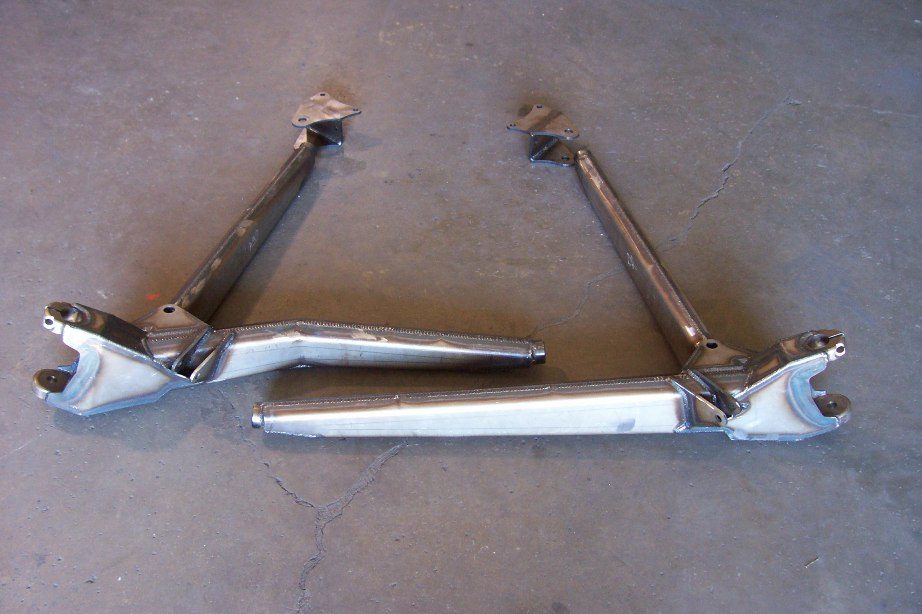

Ranger I-Beam Long Travel Kit

The Prismatic Beam Design — Why It Is Stronger Than Tubing Most I-beam designs use a round or square tube as the primary structural member with plates welded on. The GIANT MotorSports Ranger I-Beam Long Travel Kit uses a patented all-plate prismatic design — three 3/16\” plates joined in a single welded pass to form a triangular cross-section. No tubing required. The prismatic shape resists bending in the critical direction (lateral loads from cornering and impact) more efficiently than a tube of equivalent weight. The single-pass weld joining the plates is a continuous weld — not a series of plug welds or tacked seams that can propagate cracks under cyclic loading. Specifications Compatible vehicle: Ford Ranger Beam material: Three 3/16\” plates (prismatic cross-section) Spindle: Dana 44 Design: Patented prismatic all-plate Dana 44 Spindle Mounts Dana 44 spindles — sourced separately from wrecking yards or aftermarket suppliers. The Dana 44 5-on-5.5\” bolt pattern is standard. If you need a specific bolt pattern for wheel compatibility, call 714-265-1450 to discuss options before ordering. What You Will Also Need Dana 44 spindles, Ranger Crossover Steering Swinger Kit, Ranger/Explorer Engine Cage for coil-over mounting, and coil-overs sized to your planned travel. For 86-97 4WD Rangers on the TTB platform, see also the Dana 44 TTB Conversion Kit as an alternative front suspension approach.
