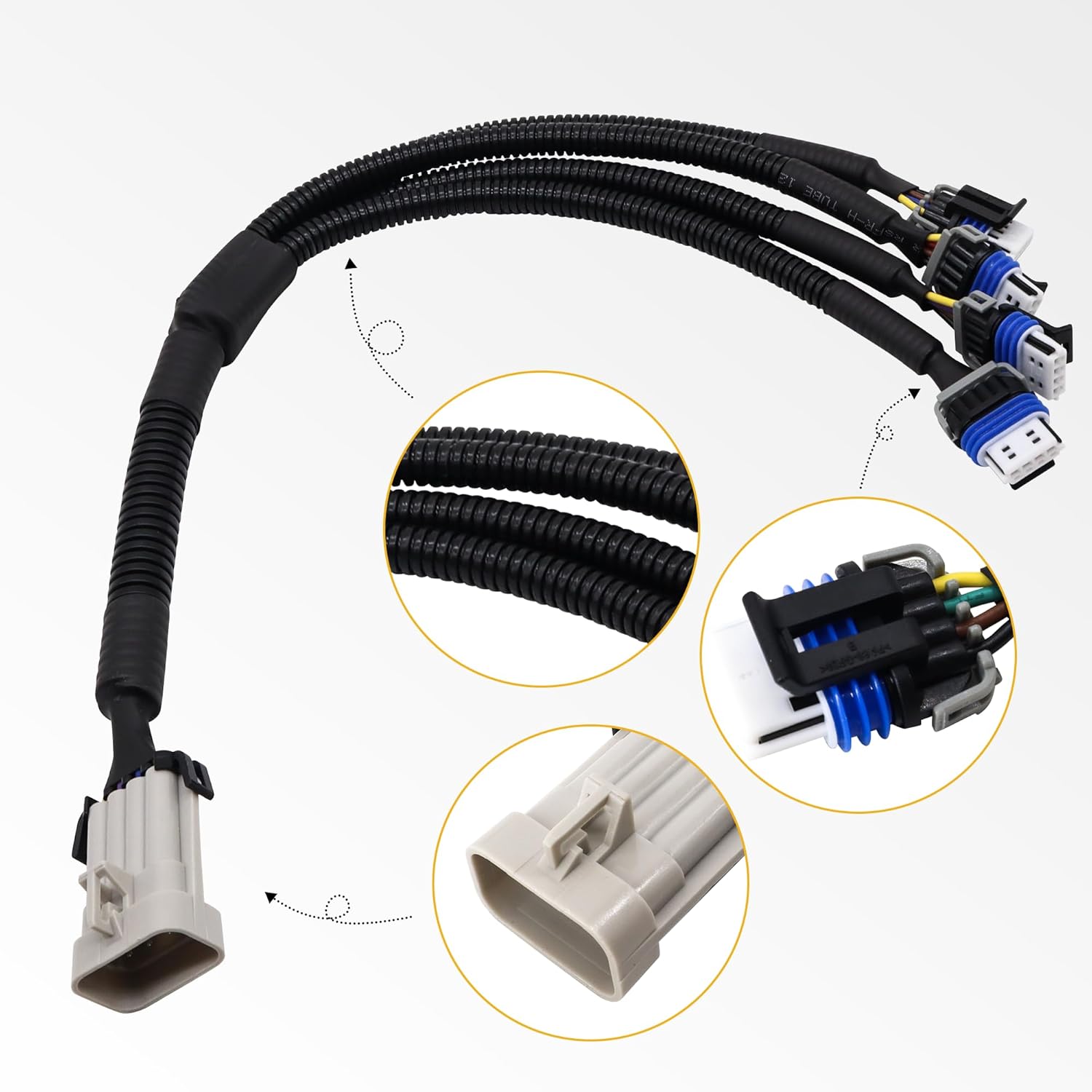

HiSport Ignition Coil Harness Connector Compatible with GM LQ9 LQ4 LS2 LS3 LS7 LSX 4.8 5.3 6.0 6.2 7.0 Truck Relocation Applications 2PCS

These are not exact duplicates of an OEM wiring harness.They are a universal fit type of harness. You get Two harnesses and both are alike.The legs are all the same length. And they have Red/Purple/Blue/Green wires to identify the cylinder location.Although I chose NOT to cut into the wiring to see what gauge it is, the wires are labeled as being 18AWG.I checked the individual wire seals and all of the coil plugs are properly sealed.The main harness plugs were NOT all correctly sealed at pin terminals. The Black/Brown/Yellow wires have the wrong seal on them. During assembly they installed the Coil plug seals (a smaller Grey seal for the smaller connector) on both ends of the wires. The Main Harness plug end should have a larger Red seal at the pin terminals.It’s nothing a dab of silicon can’t fix, just be aware when you are putting these on your hot rod to check and mak sure the terminals are sealed, otherwise some day you could have some electrical issues.It’s still a good value and they look to be made with very good materials. Definelty not the worst I have ever seen.I Hope My Review And Pictures Were Helpful To You !!
