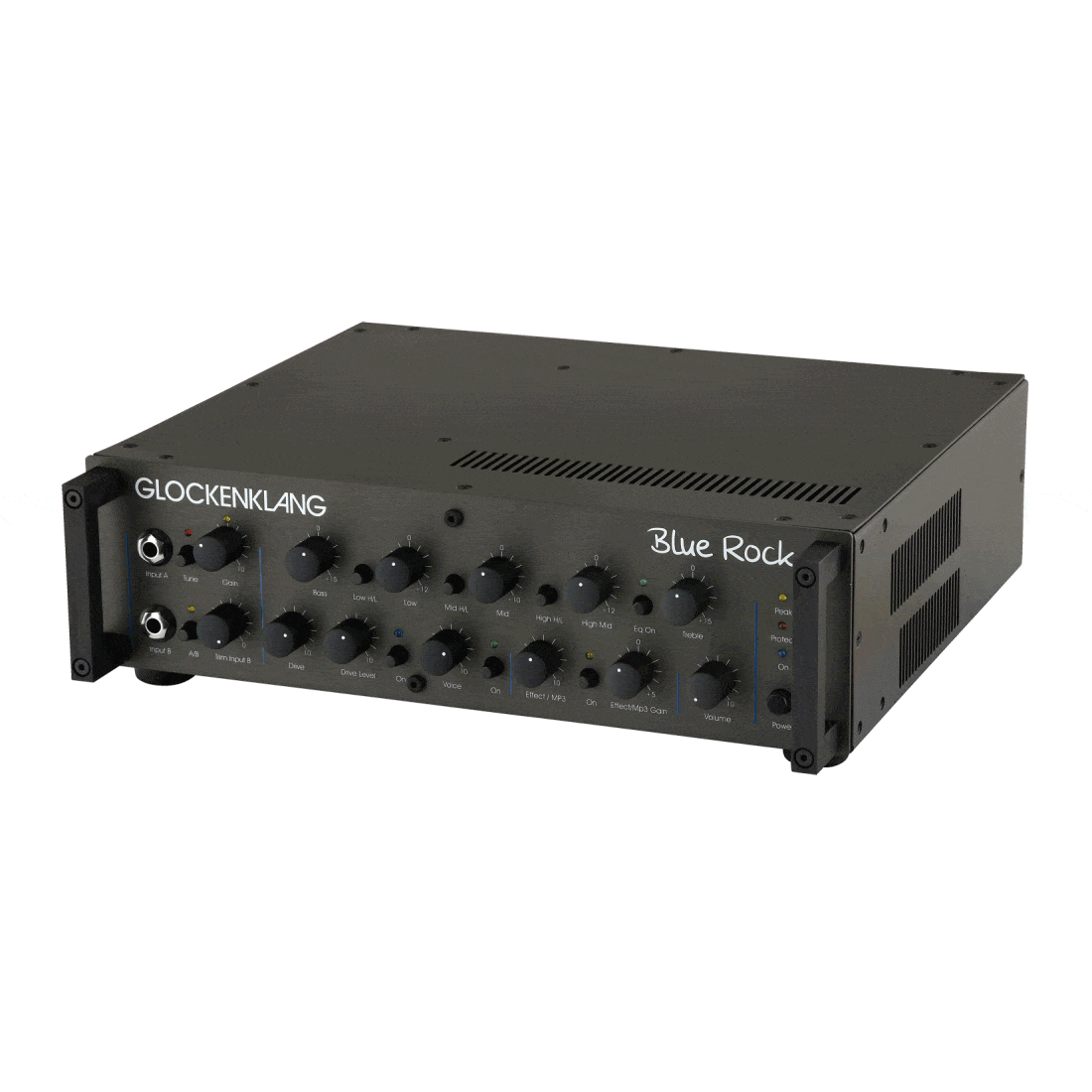

Description The Glockenklang Blue Rock Amp Head….. The Blue Rock is Glockenklang’s next Class D amp. Like all other Glockenklang amps, it features a warm and dynamic sound up to full power. Two switchable inputs, footswitchable Drive stage with Level pot and adjustable Voice filter, on-switchable 5-band eq with 3 frequency switchable Mids, switchable effects-loop, mp3-player input, symmetrical, adjustable DI-out, tuner out and phones output are the main features. High-end mains cable and 19″ rack-ears are included. Dynamic – Musical – Power – Warmth – Drive section with Voice-filter – Lightweight Download Owners Manual / Download Technical Data Sheet Detailed Specifications: Features: High performance class D power amp section (1000 watts / 4 ohms, 500 watts / 8 ohms) intern (DIP-switches at bottom) switchable to 900 W / 2,7 ohms, 600 W / 4 ohms, 300 W / 8 ohms Drive Section with Drive and Level pots, on-switchable Voice-filter adjustable, on-switchable (also by footswitch) Excellent 5-band equalization section with 3 frequency switchable Mids, on-switchable LED overdrive indicator for pre amp and peak indicator for power amp LED indicators for switch functions Dual high impedance input A/B box with separate pre gain trim for input B Effect Return also usable as mp3 player and additional mixing input Balanced DI out, adjustable (on left side by screwdriver) Tuner out Phones out Compact and robust design Lightweight – 5 kg (11 lbs) Inputs: Input A for instruments with normal level Input B with additional pre gain trim control for instruments with higher level and for piezo pickups Tone controls: On switchable 5-band EQ Bass 15 dB 60 Hz, -15dB 30 Hz Low Mid /- 12 dB 150 / 230 Hz Mid /- 10 dB 550 / 800 Hz High Mid /- 12 dB 1.2 / 2 KHz Treble /- 15 dB 8 KHz Effect loops: 1 parallel effects loop, post eq, intensity controlled by effects section on the front panel, footswitchable, also usable as second, mixable input Dimensions: 320 x 280 x 88 mm / 12.6″ x 11″ x 3.5″ (2 rackspaces) Weight: 5 kg, (11 lbs)
